C1100T Technicolor Modem Centurylink DSL ADSL Wireless Router overheat vent problem Gateway

 C1100T Technicolor Modem Centurylink DSL ADSL Wireless Router overheat vent problem Gateway

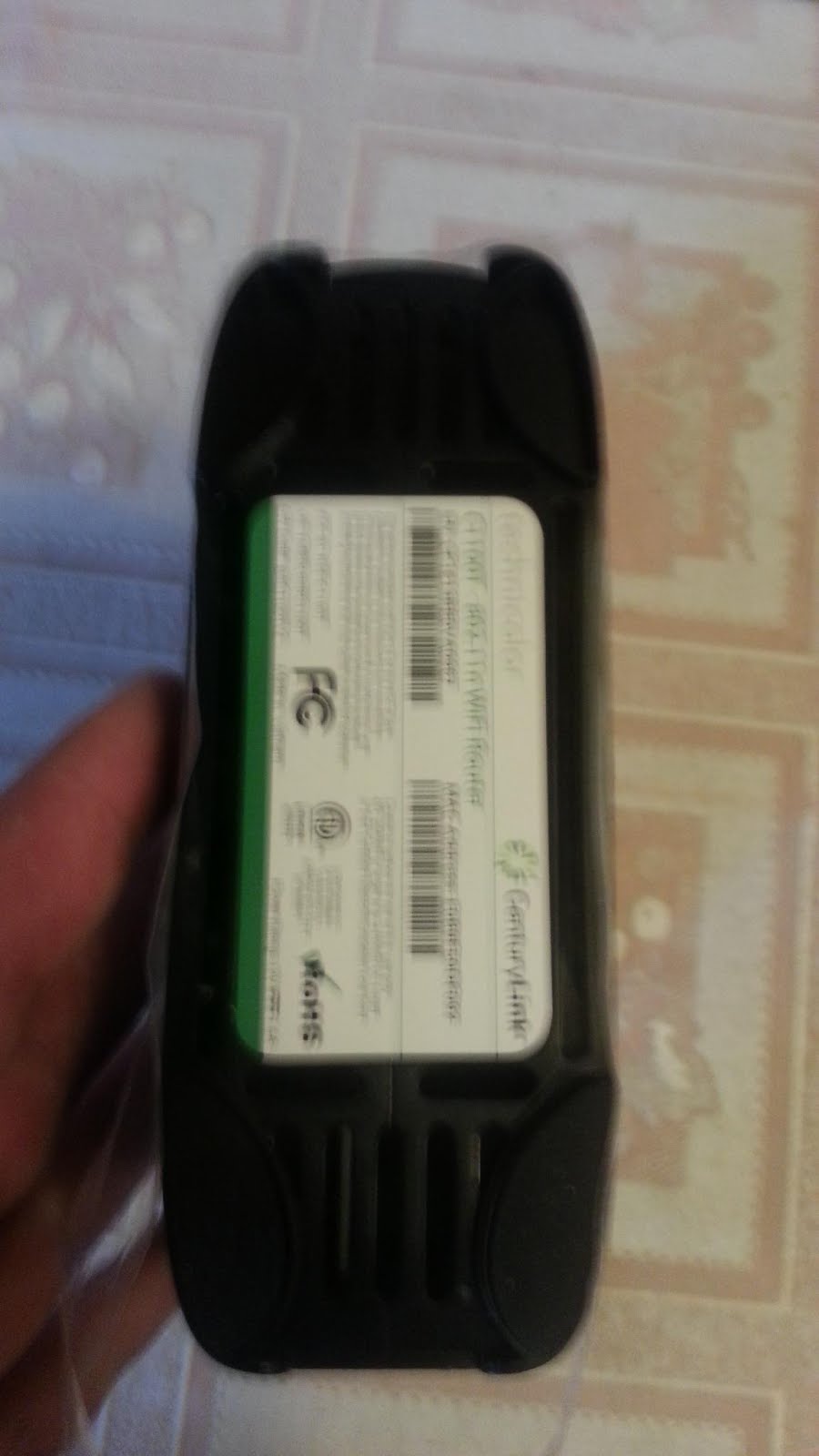

This Modem overheats. If you use a fan to move air threw it, it will work, but otherwise it overheats and stops working until you reset it.

Info from Modem:
Modem Resources

Processor:    Dual Core Processor at 400 MHz
Processor Utilization:    34%
SDRAM Memory:    128M
SDRAM Used:    56%
FLASH Memory:    128M
FLASH Used:    28%
Memory Status:    OK
Recommended Action:    NONE

Specs: http://internethelp.centurylink.com/internethelp/pdf/modems/datasheet-c1100t.pdf

Best-In-Class Ultra Broadband
The accelerating growth of WAN and LAN traffic is pushing operators
to look to ultra-high-speed network technologies to solve the bandwidth
crunch. VDSL2 combined with Gigabit Ethernet enables extremely high
bandwidth and guarantees superior quality in voice, data and video.
Some of the latest performance-enhancing technologies have been
added on top, to get the utmost out of existing infrastructures:
„ G.vector: effectively cancels the crosstalk noise inherently present
in VDSL2 bands. With vectoring, every line in a binder can operate
at peak performance, as if there were no other VDSL2 lines in that
„ G.inp (“Impulse Noise Protection”): makes sure that no errors occur
on the DSL connection, even under extreme conditions, so that highquality
video transmission is guaranteed at all times. It is based on the
principle of retransmission.
„ Easy to Use
Like all Technicolor modems and gateways, the C1100T is an easy to use,
easy to install gateway.
For convenience of the end user, the easy-to-access LEDs provide a
clear indication of start-up sequence, operational status, and connectivity
Multiple integrated web pages also allow direct access to the status and
settings, including privacy and security information.
„ IPv6 Enabled
With the approaching IPv4 address pool depletion, our products need to
be ready for IPv6. Technicolor is a frontrunner in the introduction of IPv6
on its devices, with the C1100T being enabled for multiple IPv6 field
scenarios. Internet Protocol version 6 is the next generation of Internet
technologies aiming to effectively support the ever-expanding Internet
usage and functionality, and also to address security concerns that exist
in an IPv4 environment.
Technicolor aims to introduce IPv6 as smoothly as possible in customer
networks. By providing in-depth knowledge of the networking stack, we
guide our customers in their transition from IPv4 to IPv6.
„ Easy to Manage
The C1100T is compliant with the TR-069 data model through which the
device can be configured remotely by the operator without interrupting
the end user’s experience.

Features at a Glance
„ Integrated VDSL2 modem
„ 1 GE WAN port
„ AutoWAN sensing™
„ 4 GE LAN ports
„ Wi-Fi IEEE 802.11n 2.4 GHz (2x2) with high power
„ 1 USB 2.0 master port
„ Non-service-affecting platform software upgrades
(dual bank memory)
„ Extensive remote management
„ IPv4 & IPv6 enabled
„ Designed according to the latest ECO standards

Technical Specifications
Hardware Specifications
„ Interfaces WAN 1 RJ-11 DSL line port
1 Ethernet WAN 10/100/1000 Base-T port
„ Interfaces LAN 4-port autosensing 10/100/1000 Base-T
auto-MDI/MDI-X Ethernet LAN switch
1 USB 2.0 master port
IEEE 802.11n 2.4 GHz on-board
„ Interfaces other WPS button
Reset button
„ AC Voltage 100 - 240 VAC (switched mode power supply)
„ Temperature 0° - 40° C (32° - 104° F)
„ Humidity 20% to 80%
DSL Modem Specifications
„ Supports multi mode standards
„ ADSL compliance ITU-T G.992.1 Annex A (G.dmt)
ITU-T G.992.2 Annex A (G.lite)
ITU-T G.994.1 (G.hs)
Maximum rate: 8 Mbps for downstream
and 1 Mbps for upstream
„ ADSL2 compliance ITU-T G.992.3 Annex A (G.dmt.bis)
ITU-T G.992.4 Annex A (G.lite.bis)
ITU-T G.998.4 (G.inp)
Maximum rate: 12 Mbps for downstream
and 1 Mbps for upstream
„ ADSL2+ compliance ITU-T G.992.5 Annex A
ITU-T G.998.4 (G.inp)
Maximum rate: 24 Mbps for downstream
and 3 Mbps for upstream
„ VDSL2 compliance ITU G.993.2
Up to 17a MHz profiles
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.inp)

Wireless Specifications
„ Wi-Fi access point, Wi-Fi certified®
2.4 GHz (2x2) IEEE 802.11n AP
„ Wi-Fi 2.4 GHz power High Power, up to 23 dBm (200 mW EIRP)
„ Wi-Fi Protected Setup (WPS™)
„ Wi-Fi security levels WPA2™-Enterprise / WPA™-Enterprise
WPA2™-Personal / WPA™-Personal
„ Wi-Fi Multimedia (WMM®)
„ Up to 4 BSSIDs (virtual AP) support
„ RX/TX switched diversity
„ 2x2 MIMO 2.4 GHz Wi-Fi features
20 MHz mode
„ Dynamic rate switching for optimal wireless performance
„ Manual/auto radio channel selection
„ User-friendly GUI via HTTP and HTTPS
„ Web services API for remote access
(portal, management, diagnostics, applications, ...)
„ Web-browsing intercept (install/diagnostics/captive portal)
„ AutoWAN sensing™: automatic selection and configuration of WAN interfaces
„ TR-069 CPE WAN Management Protocol
TR-098 Internet Gateway Device Management
TR-111 home network device management
TR-143 network throughput performance tests
and statistical monitoring
„ Zero-touch autoprovisioning
„ Stateful Packet Inspection Firewall (SPIF)
„ Customizable firewall security levels
„ Intrusion detection and prevention
„ DeMilitarized Zone (DMZ)
„ Multilevel access policy
„ Security and service segregation per SSID

Technical Specifications „ Expert consulting „ Qualified technical support and maintenance
„ Seamless system integration „ Efficient repair, refurbishment and recycling
„ Warranty on all our products
Networking „ Symmetrical NAT with application helpers (ALGs) „ Game and application sharing NAT port maps „ DHCP conditional serving & relay „ DNS server & relay „ IGMPv3 proxy (Fastleave) „ IGMP snooping (full routed) „ IEEE 802.1q VLAN bridging, multiple bridge instances „ Multicast to unicast translation on Wi-Fi interfaces
IPv6 Networking „ IPv4 / IPv6 dual IP stack „ Supported models PPP(oE)(oA)
„ Transitioning 6rd/6to4/6in4
„ Stateful connection tracking / stateful inspection firewall „ DHCPv6 Stateful/stateless DHCPv6 client
Stateless DHCPv6 server
Prefix Delegation
„ ICMPv6
Quality of Service „ ATM QoS UBR, VBR-nrt, VBR-rt, CBR shaping,
queuing and scheduling
CLP tagging
„ IP QoS Flexible classification
Dynamic link fragmentation
„ Ethernet QoS Priority or S-VLAN tagging
Switch port queuing and scheduling
„ Wireless QoS WMM (BE, BK, VI, VO access categories)
queuing and scheduling

Content of the Box „ C1100T for CenturyLink „ DSL cable(s) (RJ-11) „ Ethernet cable (RJ-45) „ Power supply unit „ Quick Setup leaflet(s) (optional) „ Safety Instructions & Regulatory Information booklet (optional) „ End User License Agreement (EULA) leaflet (optional) „ Filter(s) or splitter(s) (optional)

1-5, rue Jeanne d’Arc - 92130 Issy-les-Moulineaux, France
Tel: +33 (0)1 41 86 50 00 - Fax: +33 (0)1 41 86 58 59
For more information please get in touch with your usual sales
representative or use the following email:
